6. Selection

Instructions

Fix the code below. The Edison should generate a random number and beep for the same amount of times as the random number.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

#-------------Setup----------------

import Ed

Ed.EdisonVersion = Ed.V3
Ed.DistanceUnits = Ed.CM
Ed.Tempo = Ed.TEMPO_MEDIUM

#--------Your code below-----------

while True:
num = Ed.Random(1, 3)

if num == 1:
    Ed.PlayBeep()
    Ed.TimeWait(300, Ed.TIME_MILLISECONDS)
elif num == 2:
    Ed.PlayBeep()
    Ed.TimeWait(300, Ed.TIME_MILLISECONDS)
    Ed.PlayBeep()
    Ed.TimeWait(300, Ed.TIME_MILLISECONDS)
elif num == 3:
    Ed.PlayBeep()
    Ed.TimeWait(300, Ed.TIME_MILLISECONDS)
    Ed.PlayBeep()
    Ed.TimeWait(300, Ed.TIME_MILLISECONDS)
    Ed.PlayBeep()
    Ed.TimeWait(300, Ed.TIME_MILLISECONDS)

    Ed.TimeWait(1500, Ed.TIME_MILLISECONDS)

Instructions

The code below should turn a light on upon a clap, if the lights are off. It should also turn them off on a clap, it the lights are on.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

#-------------Setup----------------

import Ed

Ed.EdisonVersion = Ed.V3

Ed.DistanceUnits = Ed.CM
Ed.Tempo = Ed.TEMPO_MEDIUM

#--------Your code below-----------
leds_on = False

while True:
if Ed.ReadClapSensor() == Ed.CLAP_DETECTED:
    if leds_on == False:
        Ed.LeftLed(Ed.ON)
        Ed.RightLed(Ed.ON)
        leds_on = True
else:
    Ed.LeftLed(Ed.OFF)
    Ed.RightLed(Ed.OFF)
    leds_on = False

Ed.TimeWait(100, Ed.TIME_MILLISECONDS)

Instructions

Start the Edison driving forward until it drives under a table or similar type of area where the light is less than where it started. When it reaches a dark area, make it go backwards into the light.

Instructions

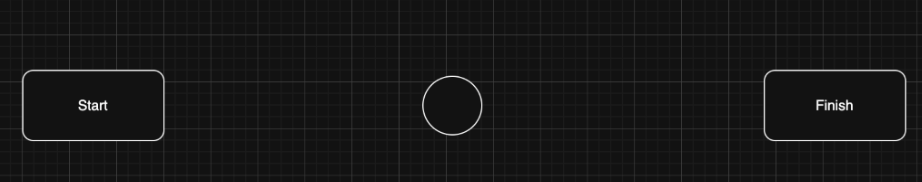

Have the Edison drive from Point A (Start) to Point B (Finish) with an obstacle in between the points. After completing, add two more obstacles and have the Edison avoid them.

Instructions

Complete the following steps one at a time, make sure to test your Edison after each step.

Step 1 – Basic movement

• Program Edison to drive forward.
• When it detects an obstacle, it should stop.

Step 2 – Avoid the obstacle

Modify the program so that when an obstacle is detected:

• Edison moves backwards 10 cm
• Turns left
• Then continues driving forward.
• Repeat for each obstacle Edison detects.

Step 3 – Add a visual signal

When Edison detects an obstacle:

• Turn on the LEDs for 1 second
• Then perform the same actions as before (reverse, turn, continue driving).

Step 4 – Make the robot smarter

Instead of always turning left:

• Edison should randomly turn left or right after reversing.
• Then continue driving until another obstacle is detected.
